Safety Coupling – Model CTS-5
with clamping hub
- with clamping hub
- series 60-300
- easy mounting
- compact design
- backlash free design
- temperature range -30° to 100°
- special designs such as sealed versions or stainless steel on request
| properties | unit | unit symbol | 60 | 150 | 200 | 300 |
|---|---|---|---|---|---|---|
| 360°/60° adjustment range 1 from - to | (Nm) | TKN | 10-30 | 20-70 | 40-100 | 80-200 |
| 360°/60° adjustment range 2 from - to | (Nm) | TKN | 25-80 | 50-150 | 80-200 | 150-250 |
| 360°/60° adjustment range 3 from - to | (Nm) | TKN | 50-100 | 100-225 | 150-280 | 200-440 |
| 360°/60° adjustment range 4 from - to | (Nm) | TKN | 250-400 | |||
| actuation distance * | (mm) | 1,7 | 1,9 | 2,2 | 2,2 | |

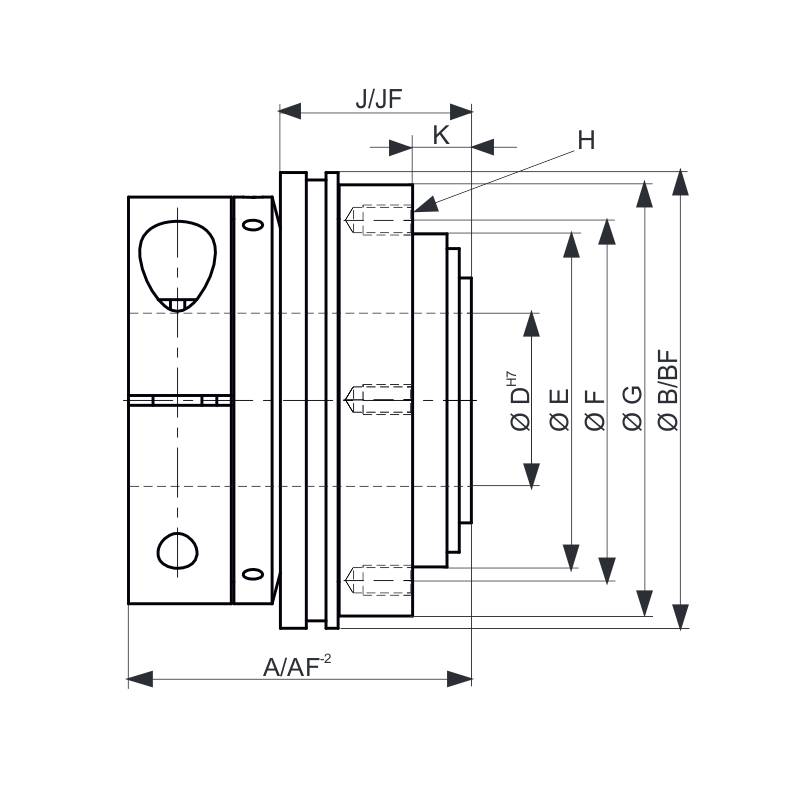

| overall length | (mm) | A | 66 | 71 | 81 | 85 |
| actuation ring Ø | (mm) | B | 74 | 93 | 100 | 121,5 |
| inner diameter from Ø-Ø H7 | (mm) | D | 14-30 | 19-38 | 24-40 | 28-56 |
| pilot diameter h7 | (mm) | E | 55 | 68 | 75 | 82 |
| bolt-hole circle Ø ±0,2 | (mm) | F | 63 | 78 | 85 | 98 |
| flange outs. Ø-0,2 | (mm) | G | 73 | 88 | 99 | 113 |
| thread | H | 6xM5 | 6xM6 | 6xM6 | 6xM8 | |
| thread depth | (mm) | 9 | 10 | 11 | 10 | |
| distance | (mm) | J | 37 | 39 | 44 | 47 |
| distance | (mm) | K | 11 | 12 | 12 | 15 |
| approximate weight | (kg) | 1 | 1,3 | 2 | 3 | |
| CT-S5-22-02 |
Series 0060-0300 with clamping hub
The actual weight is determined by the size of the fitting (D).
* = Switching distances generally apply to the middle setting range and may slightly deviate downwards or upwards.
